Name: Maxi Roll Band Saw JRT HRT Industrial Roll Cutting Machine Cutter
Brand: ORIGIN
Price: 1 USD

Brand Name : ORIGIN

Model Number : PZ-DJ

Place of Origin : China

MOQ : 1 set

Delivery Time : 50 days

Packaging Details : wooden packing

Cutting Diameter : 150-300mm

Cutting Type : Tissue Paper/JRT /HRT

Voltage : 380V ,50HZ

Cutting Length : 90-300mm (Customized)

Speed : 40-60 cuts/min

Warranty : One year

Contact Now

Product Description

Machine features:

Equipped with flexible clamping system, it can work with different cutting log diameters without replacing the clamper . Clamping log diameter can be set on touch panel directly.
Cutting size: Φ180-280mm, width 90-300mm (other size to be specified)
Cutting operation is fully automatic , increase the safety in production.
Saw blade tension is controlled by hydraulic system . The compact rolls which carry hard paper cores are cut easily.

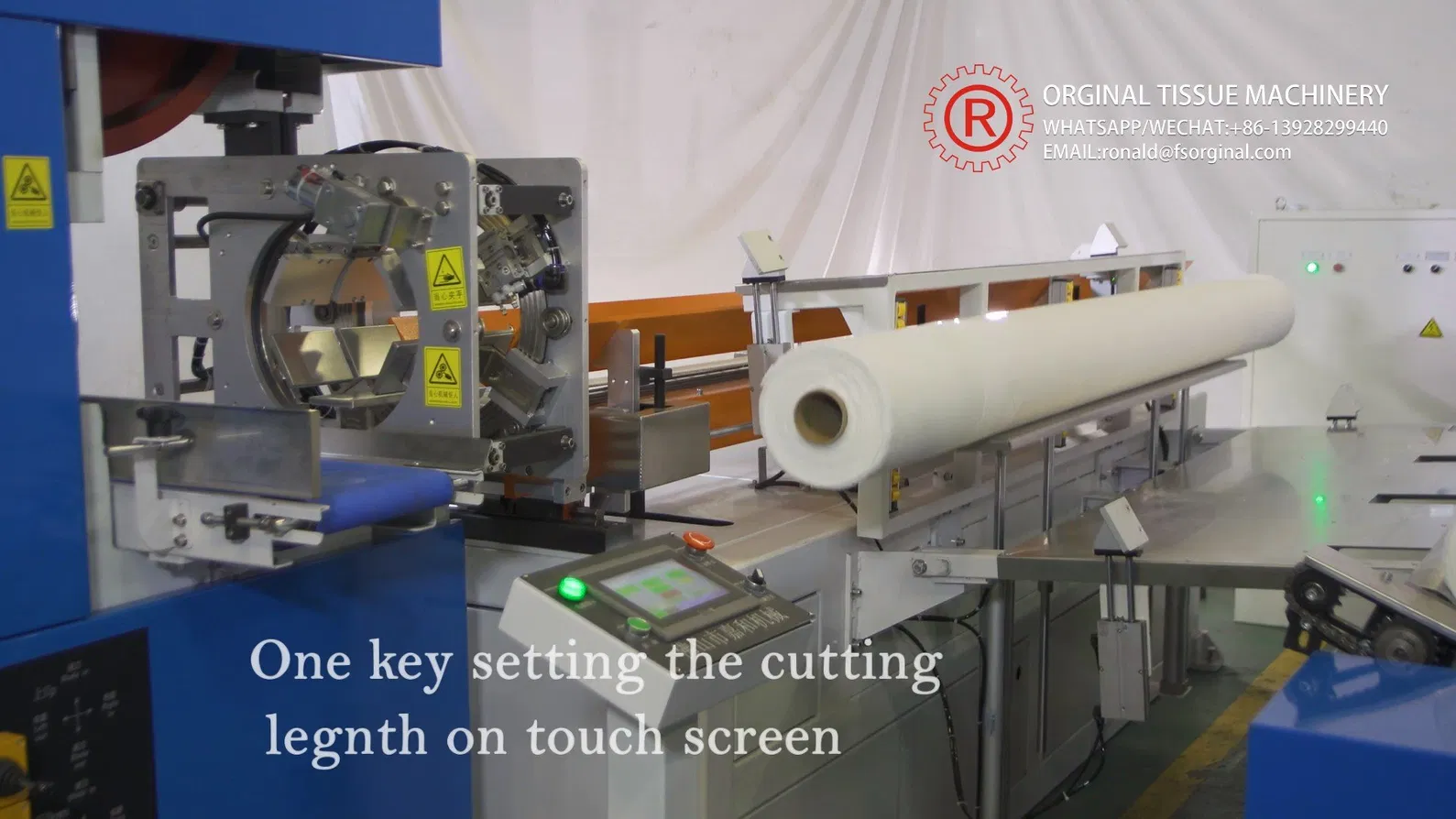

It is easy to operate this band saw by setting some simple cutting parameters on touch panel.

Tissue log transfer stand
Connecting the band saw with the rewinder. The tissue log will be transfer to the band saw cutting unit automtically.

Flexible clamping system
Cutting roll diameter from 200-300mm is adjustable. The clamping system is controlled by HMI.

Automatic grinding system
The saw blade grinding is automatic.

Machine Model	DJ-PZ 3000
Parent roll dimension:	width ≤ 3000mm Ø150-300 mm
Slitting length	90-300mm
Adjustable clamping system	Ø150-300 mm, adjustable diameter range Ø150-300 mm
Slitting lane	One lane
Running speed	40cuts/min
Feeding Method	Servo motor drives the pushers
Cutting Method	cut by saw blade
Trimming	20mm---50mm
Cutting Accuracy	Length tolerance±1mm
Blade Grinding System	Automatic blade grinding
